How to Add Your Jupyter Notebook Example

Please ensure that your notebook is well-formatted for documentation and reproducible by others.

Finalizing your notebook

Follow these steps to keep your notebook clean, structured, and functional:

  1. Ensure you are using relative file paths.

  • Example: ds_nazare = xr.open_dataset('/data/s2_nazare.nc')

  • Avoid something like ds_nazare = xr.open_dataset('C:/Users/your_name/ray_tracing/notebooks/your_folder/data/s2_nazare.nc')

  1. Include required data.

  • If your example requires generated data, include the code that creates it.

  • Include actual data files in a data/ folder within your example directory.

  • Do not include synthetic data files.

  1. Refactor helper functions.

  • Move non-essential functions to a support.py file in your subfolder.

  • Keep function definitions in the notebook if their implementation is meaningful to the example.

  1. Remove unnecessary code and output.

  • Remove print statements used for debugging unless they add value.

  • Delete commented-out code unless it serves as a meaningful explanation.

  • Delete any unused cells.

  1. Present output in a clear and readable format.

  • Use tables, formatted strings, or labeled figures.

  • Output should be clear and understandable to the reader.

  1. Ensure clear markdown organization.

  • Use headers for organization (# Title, ## Section, ### Subsection).

  • Include a sentence or two explanation after each header.

  • Verify that markdown renders correctly, especially for math formatting.

Important note: use the # header only once for the title of your file. If you include it multiple times, the documentation will not render properly.

  1. Ensure code executes properly.

  • (Re)Run pixi run -e docs develop

  • Restart the kernel and run all cells.

  • Ensure all cells execute successfully in the docs environment.

  1. Proper style.

  • Use Ruff for formatting and linting:

pixi run ruff format path/to/file
pixi run ruff check path/to/file

  • Use meaningful variable names.

  • Write clear but non-redundant comments.

  • Include docstrings for functions (“““Description”““).

  • Check spelling and grammar in markdown, comments, and code.

Adding your example to the documentation

Now that your notebook is polished, follow these steps to include it in the notebooks gallery:

  1. Save your notebook in the right location.

  • Create a subfolder inside the notebooks/ directory to contain your example.

  • Example: this file is located at notebooks/tutorial/tutorial.ipynb.

  1. Add notebook to the gallery.

  • Append your notebook filename (without .ipynb) to docs/gallery_header.rst.

  • Example: this notebook is tutorial.ipynb, so tutorial is appended to docs/gallery_header.rst.

Important note: If a name conflict exists, rename your notebook.

  1. Make sure the docs build with no error.

  • Run:

SPHINXOPTS="-W --keep-going -n" pixi run -e docs python-docs

  • Ensure there are no errors.

  • Open docs/_build/html/index.html in a browser and confirm your notebook appears in the gallery.

  1. Submit your notebook.

  • If everything works, open a Pull Request (PR) to add your example! 🎉

  1. Getting help.

  • If you have any questions or following these instructions does not work, please ask!

Example Notebook

Below is an example notebook. This section of the notebook was adapted from the shear current example, formatted using the steps above.

# include imports first, in one cell
from mantaray.core import single_ray
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt

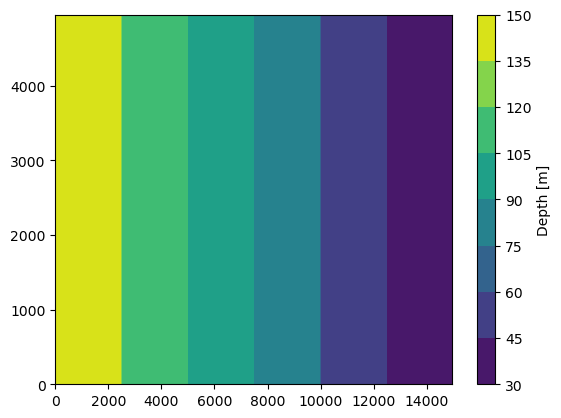

Create and display bathymetry dataset based on a step function.

# Create Bathymetry
NX = 300
NY = 100
dl = 50
xs = np.arange(0, NX) * dl
ys = np.arange(0, NY) * dl
xss, yss = np.meshgrid(xs, ys)
coords = xss * yss
depth_max = 140
d_depth = 20
n_shelfs = 6
depth = depth_max - np.floor(np.linspace(0, n_shelfs, NX, endpoint=False)) * d_depth
bathymetry = depth * np.ones((len(ys), len(xs)))
fig, ax = plt.subplots()
depth = ax.contourf(xss, yss, bathymetry)
cbar = fig.colorbar(depth)
cbar.ax.set_ylabel("Depth [m]")
plt.show()
_images/tutorial_4_0.png

Save bathymetry data as netcdf3 file.

bathymetry_array = xr.Dataset(
    data_vars={"depth": (("y", "x"), bathymetry)},
    coords={"x": ("x", np.float64(xs)), "y": ("y", np.float64(ys))},
)
bathymetry_array.to_netcdf(path="bathymetry.nc", format="NETCDF3_CLASSIC")

Create null current and save it as netcdf3 file.

null_current = xr.Dataset(
    data_vars={
        "u": (("x", "y"), np.zeros_like(coords).T),
        "v": (("x", "y"), np.zeros_like(coords).T),
    },
    coords={"y": ys, "x": xs},
)
null_current.to_netcdf(path="null_current.nc", format="NETCDF3_CLASSIC")

Define the initial ray tracing parameters for this example.

# Define wave number
k = 2 * np.pi / 20000  # lambda = 100m
phi0 = 20 * np.pi / 180  # phi0 = 25 degrees from x axis
kx = k * np.cos(phi0)
ky = k * np.sin(phi0)
omega = np.sqrt(depth_max * 9.81) * k

# Define ray initial positon
x0 = 50  # Offset from 0 by 1 step
y0 = 500

Run single_ray to simulate your initial ray.

ray_evolution_raw = single_ray(
    x0, y0, kx, ky, 1000, 0.5, bathymetry="bathymetry.nc", current="null_current.nc"
)

and so on for the rest of your notebook …
